How CNC Positional Accuracy Differs from Geometric Tolerance

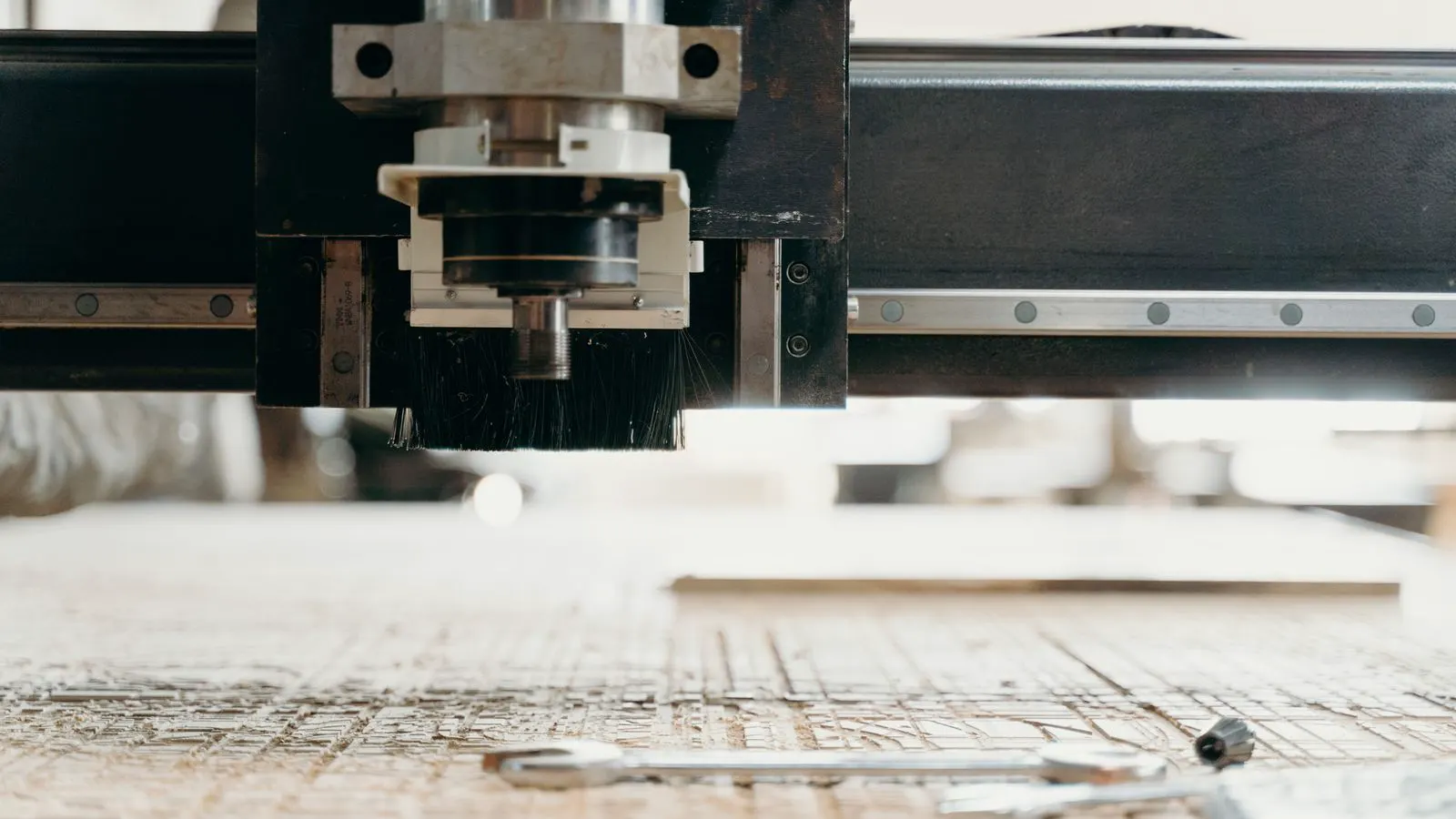

What Is CNC Positional Accuracy

Positional accuracy is the machine’s ability to place the cutting tool at a commanded coordinate. If the controller sends the tool to X 100.00, Y 25.00, Z -5.00, positional accuracy describes how close the actual tool tip reaches that point.

This is a linear measurement. It applies to each axis independently or as a combined position error. A machine with a stated positional accuracy of 50 microns means the tool can be expected to land within 50 microns of the commanded position under normal operating conditions.

Positional accuracy is a machine characteristic. It comes from the drive system, ball screws, rails, backlash compensation, and thermal stability. It tells you how well the machine can move to a specific coordinate in space.

This is not the same as how well the part holds its shape. A part can be positioned perfectly at every coordinate and still be out of round, out of square, or misaligned.

What Is Geometric Tolerance

Geometric tolerance defines the allowed deviation of a feature from its ideal geometry. These are shape, orientation, and relational tolerances. They include circularity, cylindricity, straightness, flatness, perpendicularity, parallelism, concentricity, and runout.

A geometric tolerance does not care where the feature is located on the part. It cares how the feature relates to the ideal form or to other features. A bore may be perfectly centered in the material but still fail a concentricity tolerance if the inner and outer surfaces do not share the same axis.

Geometric tolerances are drawing requirements. They appear on the part print as GD&T symbols or notes. They define the tolerance limits that the finished part must satisfy.

These limits are independent of the machine’s positional accuracy. A machine can position every cut perfectly and still produce a part that fails a runout tolerance because of tool deflection, workpiece clamping, or thermal growth during machining.

Why Both Matter for Precision Machining

Precision machining depends on both. Positional accuracy gets the tool to the right place. Geometric tolerance ensures the part holds the required shape and alignment.

A buyer who only checks positional accuracy may select a machine that cannot produce the required features. A buyer who only checks geometric tolerance may over-specify the machine for simple parts or under-specify it for complex ones.

Consider a shaft with a stepped diameter and a keyway. Positional accuracy determines whether the keyway lands at the correct axial location. Geometric tolerance determines whether the keyway is parallel to the shaft axis and whether the shaft itself is straight.

If the keyway is off location but parallel, the part may still be functional if the assembly allows for it. If the shaft is off center but the keyway is parallel, the part may fail in service because the mating component will rub against the shaft.

This distinction changes sourcing decisions. For parts with tight positional requirements and loose geometric requirements, a machine with excellent positional accuracy is the priority. For parts with loose positional requirements and tight geometric requirements, the machine must also hold shape and alignment under production conditions.

How Each Affects Sourcing Decisions

When evaluating a machine for a new product line, start with the drawing. Identify which dimensions are positional and which are geometric.

Positional dimensions are the ones that define where a feature is located relative to the part origin. These are often the most straightforward to verify on a machine. Run a test program that commands the tool to a series of points and measure the actual tool position. This tells you whether the machine can hold its positional accuracy.

Geometric dimensions are harder to verify. They require measuring the finished feature against a datum. A CMM, a bore gauge, or a dial indicator may be needed. The machine itself may not be able to confirm that it held a concentricity tolerance during the cut.

This affects how you evaluate a machine. Positional accuracy can be checked with a laser interferometer, a test bar, or a simple coordinate probe. Geometric tolerance verification often requires the finished part to be inspected after machining.

A practical approach is to machine a test part that includes the most demanding geometric features. Run it several times. Inspect each run. If the geometric features fall within tolerance limits across repeated runs, the machine can hold those tolerances in production. If they drift, the machine may need additional setup, a different tooling strategy, or a different machine.

A Worked Example

Imagine a plate with two holes. The drawing specifies that each hole is positioned 100 mm from the left edge and 50 mm from the top edge. The positional tolerance is plus or minus 0.1 mm. The diameter of each hole is 10 mm with a geometric tolerance of 0.02 mm circularity and 0.05 mm runout relative to the plate surface.

Positional accuracy determines whether the drill bit lands 100 mm from the edge. If the machine’s positional accuracy is 0.05 mm, the hole center will fall within 0.05 mm of the commanded point. This is within the 0.1 mm positional tolerance.

Geometric tolerance determines whether the hole is round and whether the drill bit was perpendicular to the plate surface. If the plate is not flat, or if the drill bit is not square to the plate, the hole may be out of runout. The hole center may be perfectly located, but the hole itself may fail the runout tolerance.

In this case, the machine must be able to position the tool accurately and also hold the drill bit perpendicular to the plate. This requires a rigid fixture, a clean plate surface, and a stable drill head. The positional accuracy alone does not guarantee the geometric tolerance.

A Quick Comparison Table

Feature	Positional Accuracy	Geometric Tolerance
What it measures	Tool location in space	Shape, alignment, and relation of features
Typical units	Millimeters or microns	Millimeters, microns, or angles
Where it appears	Machine spec sheet	Part drawing
How it is verified	Interferometer, test bar, probe	CMM, bore gauge, dial indicator
What it affects	Hole location, step depth, axial position	Roundness, straightness, parallelism, runout
Buyer priority	Machine capability check	Inspection plan and process control

How to Verify Both Before Purchase

Before finalizing a machine purchase, run a test that covers both positional and geometric requirements.

First, command the tool to a series of points across the travel range. Measure the actual position. Compare the results to the stated positional accuracy. This confirms the machine can hold its linear positions.

Second, machine a part that includes the most demanding geometric features. Inspect the part after each run. Check circularity, runout, parallelism, and concentricity. Repeat the process several times to confirm repeatability.

If the positional checks pass but the geometric checks fail, the problem may not be the machine. It may be the fixture, the tooling, or the workpiece material. A poorly clamped part can shift during the cut. A worn tool can cause deflection. A soft material can spring back after the cut.

If both checks pass, the machine can support the production requirements. Document the results. Keep the test programs and inspection reports. These documents support the sourcing decision and provide a baseline for future quality checks.

The distinction between positional accuracy and geometric tolerance is not academic. It changes how you buy, how you set up, and how you inspect. Precision machining requires both. A machine that positions well but cannot hold shape is not enough. A machine that holds shape but positions poorly will produce parts that do not assemble.

Review the drawing. Separate positional dimensions from geometric tolerances. Verify each against the machine capability. This keeps the sourcing decision grounded in the actual part requirements rather than in spec sheet numbers alone.
